Stilldrillin's Table......
« on: February 28, 2020, 06:19:08 am »
Not sure, just how this will progress.
 As all the earlier pics are on p-bucket, and need an add on, to be viewed.

I have been reminiscing recently. Delving into the past years since I retired, and set up my little workshop.

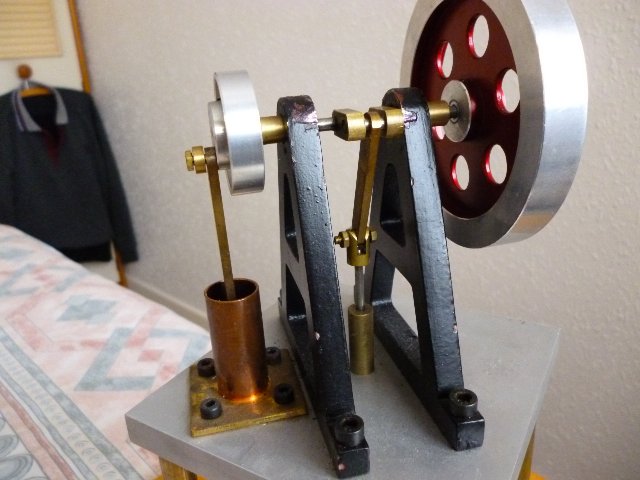

One from relatively recently. Mia's Engine. (p-bucket free).....




Here's a link to the build story....    https://madmodder.net/index.php/topic,9470.0.html

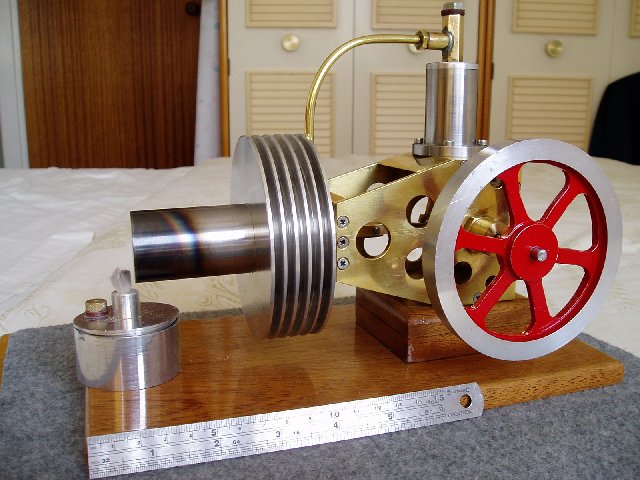

One of my first hot air resuscitations.  Justine's by Rizzo.....




The refurb link....    https://madmodder.net/index.php/topic,5457.0.html


Hope you find them interesting!

Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4122
  • Location: Plano, Texas
Re: Stilldrillin's Table......
« Reply #1 on: February 28, 2020, 07:11:48 am »
I read both of the threads you posted for your Table David.

Great stuff!

I loveMia’s Finger Engine.

You also did a very nice job on the Hot Air Engine. I love the Green Color.

Thank you for participating in GPU 2020. 🤠
Logged

  • Sr. Member
  • ****
  • Posts: 1076
  • Location: Gahanna, Ohio
Re: Stilldrillin's Table......
« Reply #2 on: February 28, 2020, 07:44:48 am »
Both engines are great - good work!
Logged
Regards,
Larry

  • Jr. Member
  • **
  • Posts: 54
  • It's all hot air. Mostly.....
Re: Stilldrillin's Table......
« Reply #3 on: February 28, 2020, 08:53:33 am »
Charlie, Larry.
 Thank you, both!

Unfortunately, the green one was not mine. It was on Ebay, at the same time as I was fumbling. I couldn't believe tha price paid!  :o

Mine, went back to it's previous owner, in Scotland. Who eventually moved it on, again.
 I call it the Cosmic Engine Supply System. They come They go. Countrywide. Worldwide.

I will be showing several more. Some I still have. Most, I have swapped for other orphans to resuscitate...  ;)
Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Sr. Member
  • ****
  • Posts: 1818
  • Location: The Winter Wonderland, Michigan.
Re: Stilldrillin's Table......
« Reply #4 on: February 28, 2020, 03:28:40 pm »
I like that finger motor, it has those finger spinners all beat. That was a great story about  your grand daughter.
Just when you thought it was safe to go into the water, she remembered.
Logged
Tommy

"Steam it, like you mean it."

  • Jr. Member
  • **
  • Posts: 54
  • It's all hot air. Mostly.....
Re: Stilldrillin's Table......
« Reply #5 on: February 28, 2020, 03:50:31 pm »
Quote from: Woe is me on February 28, 2020, 03:28:40 pm
I like that finger motor, it has those finger spinners all beat. That was a great story about  your grand daughter.
Just when you thought it was safe to go into the water, she remembered.
Thanks Tommy.

She's 10yrs old, now.
Reminds me every time I'm packing for a show. "Don't forget my engine, for the boys and girls to play with". Bless her!

Girls, seem much more intrigued than boys......




Only had the one accident.
 When one little madam snatched it off the table. And, dropped it. Bending one of the cranks....  >:(


Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Jr. Member
  • **
  • Posts: 54
  • It's all hot air. Mostly.....
Re: Stilldrillin's Table......
« Reply #6 on: February 28, 2020, 04:44:40 pm »

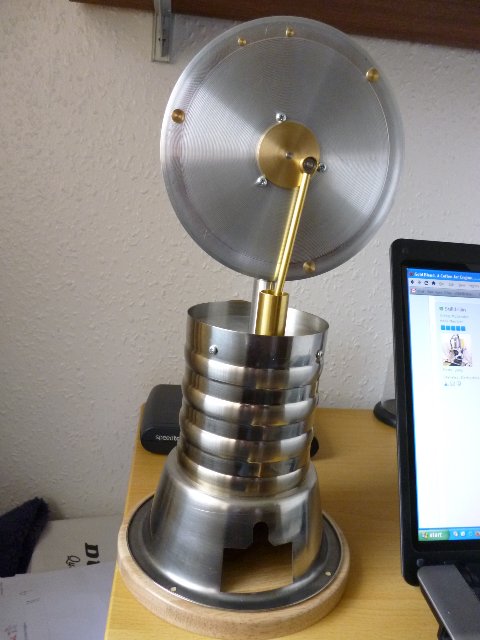

This engine is still with me. Still doing it's job, 6 hours or so, every show day.

I call it, Gold Blend.... It's a coffee jar engine.  ;)




Made from mostly, household components.
 Coffee storage jar, dog's feeding bowl, wooden chopping board, omelette pan, Land Rover heater pipe.

The original balsa wood displacer, has now been replaced by a Lyles golden syrup tin. It is now meths fired.

Here is the original build sequence...   https://madmodder.net/index.php/topic,5732.0.html
Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4122
  • Location: Plano, Texas
Re: Stilldrillin's Table......
« Reply #7 on: February 28, 2020, 05:20:16 pm »
Quote from: Stilldrillin on February 28, 2020, 04:44:40 pm
This engine is still with me. Still doing it's job, 6 hours or so, every show day.

I call it, Gold Blend.... It's a coffee jar engine.  ;)




Made from mostly, household components.
 Coffee storage jar, dog's feeding bowl, wooden chopping board, omelette pan, Land Rover heater pipe.

The original balsa wood displacer, has now been replaced by a Lyles golden syrup tin. It is now meths fired.

Here is the original build sequence...   https://madmodder.net/index.php/topic,5732.0.html

A McGyver Engine!

Very resourceful.
Logged

  • Full Member
  • ***
  • Posts: 563
  • Location: Minnesota
Re: Stilldrillin's Table......
« Reply #8 on: February 28, 2020, 06:03:52 pm »
Looks professionally made!
Logged

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4122
  • Location: Plano, Texas
Re: Stilldrillin's Table......
« Reply #9 on: February 28, 2020, 07:04:01 pm »
Quote from: CBWho on February 28, 2020, 06:03:52 pm
Looks professionally made!

Agreed.  Impressive how good it looks from salvaged and reclaimed materials.
Logged

  • Global Moderator
  • Engineer
  • *****
  • Posts: 5159
  • Wherever you go ......... there you are!
  • Location: Eastern Sierra
Re: Stilldrillin's Table......
« Reply #10 on: February 28, 2020, 08:34:45 pm »
I have to agree, that last one looks totally like it was a commercial production .... NICE!

Very interesting and eclectic start, I'll look back soon hoping for more!!!
Logged
"Information is not knowledge, Knowledge is not wisdom, Wisdom is not truth, Truth is not beauty, Beauty is not love, Love is not music: Music is THE BEST...
Wisdom is the domain of the Wis (which is extinct). Beauty is a French phonetic corruption of a short cloth neck ornament currently in resurgence..."
F. Zappa ... by way of Mary, the girl from the bus.

  • Jr. Member
  • **
  • Posts: 54
  • It's all hot air. Mostly.....
Re: Stilldrillin's Table......
« Reply #11 on: February 29, 2020, 02:37:47 pm »
Thanks for your kind comments, chaps. Very much appreciated!

Please  remember, I have no real archives. Only the wreckage left after the p-bucket fiasco.
 I'm so pleased, I have my previous build posts to look back on.

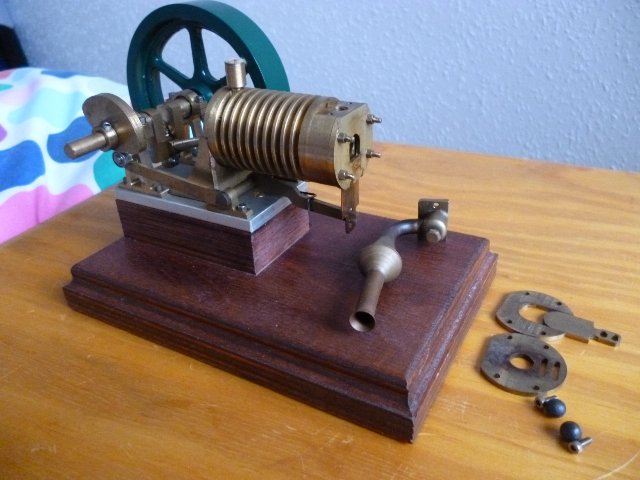

This is Metisse. (As it arrived). Came to me as a swap, for a Solar 1 hot air engine....




 Still with me. Still running full show days, 8 or 9 times a year.

 Hope you find the build, interesting....   https://madmodder.net/index.php/topic,8821.0.html
Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Jr. Member
  • **
  • Posts: 54
  • It's all hot air. Mostly.....
Re: Stilldrillin's Table......
« Reply #12 on: March 01, 2020, 05:25:36 am »
This is the rebuild of a small Bengs flamelicker Nick.




Note how it's performance improves, after each modification. (Unusual!).... https://madmodder.net/index.php/topic,9661.0.html
Logged
David....   Still drilling holes. Occasionally, in the right place.
 https://www.youtube.com/channel/UCeKtH_z2OLH8EXDk9ziWl8Q/videos

  • Global Moderator
  • Engineer
  • *****
  • Posts: 5596
  • Location: St. Paul Indiana
Re: Stilldrillin's Table......
« Reply #13 on: March 01, 2020, 06:32:09 am »
good stuff, thanks for showing.
Logged
Bruce, St. Paul Indiana, USA
"Originality thrives in seclusion free of outside influences beating upon us to cripple the creative mind."
  Nikola Tesla

  • Administrator
  • Engineer
  • *****
  • Posts: 5070
  • Location: Connecticut - USA
Re: Stilldrillin's Table......
« Reply #14 on: March 01, 2020, 06:36:05 am »
Hi David, I just read over your thread madmodder.net/index.php/topic,9661.0.html
and the performance increases achieved are quite impressive. It looks a lot better, too!


I am wondering what oil you use on this and some small Stirling Cycle engines where you might not use graphite. I have found on some of my least powerful engines, a 50/50 mix of naphtha and synthetic clock oil helps by thinning the oil to where it is less of a drag on friction bearing surfaces.


Very well done...!!!


Gil




Logged
