Bart1353 Jensen #45 restoration project "it it finished" W/video

• Bart1353 Jensen #45 restoration project "it it finished" W/video
  Posted by St Paul Steam on 24 Jan, 2021 20:42
• This restoration project started from this thread a few days ago

  https://www.officeofsteamforum.com/wanted/jensen-model-45-vertical-engine/msg33675/#msg33675

  The Jensen #45 arrived yesterday & I was able to get on it right away , here is what we have...

  https://youtu.be/8j_3OsDaux0

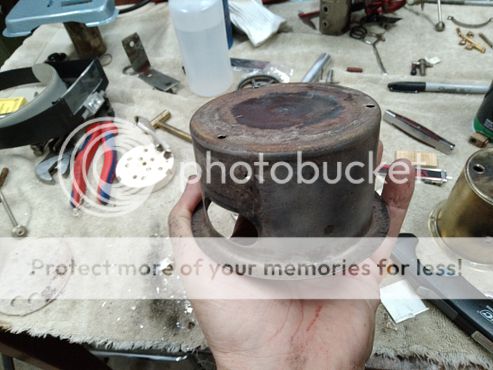

  tear down of the Jensen #45 begins






  this is ugly...



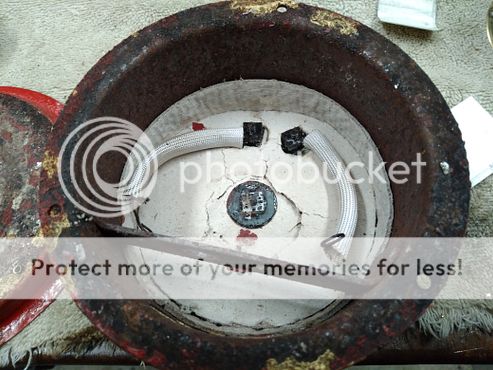

  old asbestos , carefully removed.



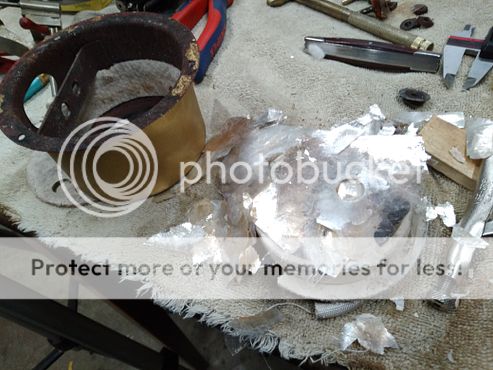

  I think this was called Mica sheet / anyways it disintegrated when opened up.



  a little bead blasting performed.




  special dollies made for hammering out the dents.




  And now the restoration begins.
  middle section repainted


  Bottom plate painted


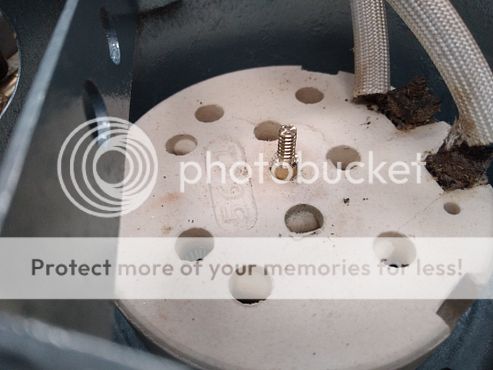

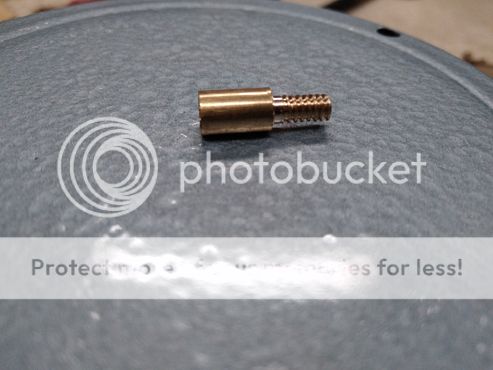

  When I tried (unsuccessfully) to remove the ceramic heater bolt, it snapped off although I oiled it & heated repeatedly, I had enough post left to thread & make a suitable extension.



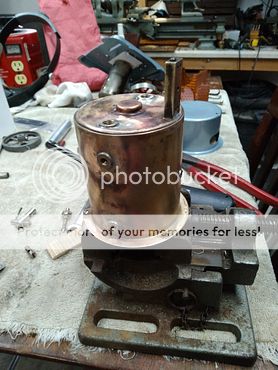

  since one of the sight glass porthole threads was weak & one of the top whistle/SV ports was also damaged I decided to make 4 new brass bushings for a much stronger (lifetime) boss.



  All soldered in place now



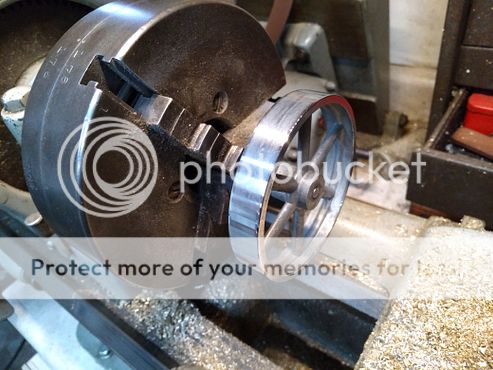

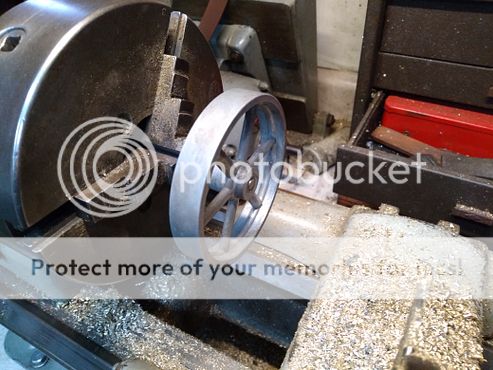

  flywheel polished up a bit
  before

  after


  I have a short video downloading & will post soon of the progress. stay tuned...
•
